How To Locate The Median In A (seaborn) KDE Plot?

I am trying to do a Kernel Density Estimation (KDE) plot with seaborn and locate the median. The code looks something like this: import seaborn as sns import numpy as np import ma

Solution 1:

You need to:

  1. Extract the data of the kde line
  2. Integrate it to calculate the cumulative distribution function (CDF)
  3. Find the value that makes CDF equal 1/2, that is the median
import numpy as np
import scipy
import seaborn as sns
import matplotlib.pyplot as plt

sns.set_palette("hls", 1)
data = np.random.randn(30)
p=sns.kdeplot(data, shade=True)

x,y = p.get_lines()[0].get_data()

#care with the order, it is first y
#initial fills a 0 so the result has same length than x
cdf = scipy.integrate.cumtrapz(y, x, initial=0)

nearest_05 = np.abs(cdf-0.5).argmin()

x_median = x[nearest_05]
y_median = y[nearest_05]

plt.vlines(x_median, 0, y_median)
plt.show()

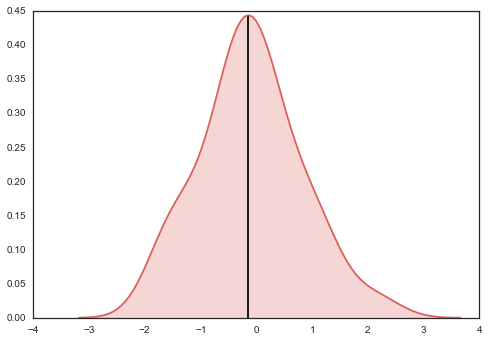

Result
